13.3 Isikrini sochuku

Ingcaciso yeMveliso

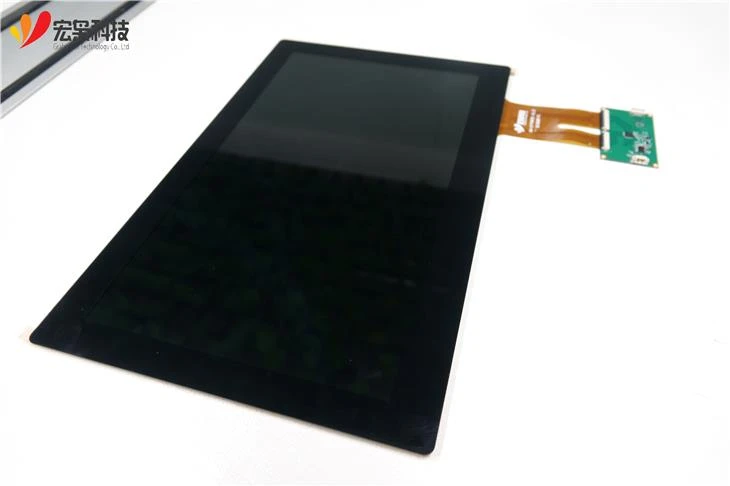

Isikrini esiqikelelweyo se-13.3 sothutho esine-Cypress I-Cypress ICOFID SID SIPOLL SEFICY STERS, i-PHEALS, izixhobo zentengiso ephathwayo, kubandakanya amanye amabala kunye nonyango olukhethekileyo-i-aff i-af, isakhiwo esingaqhelekanga njl.

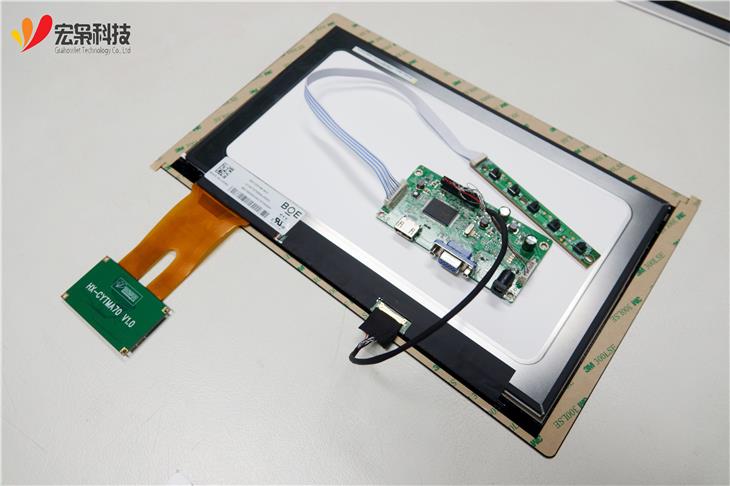

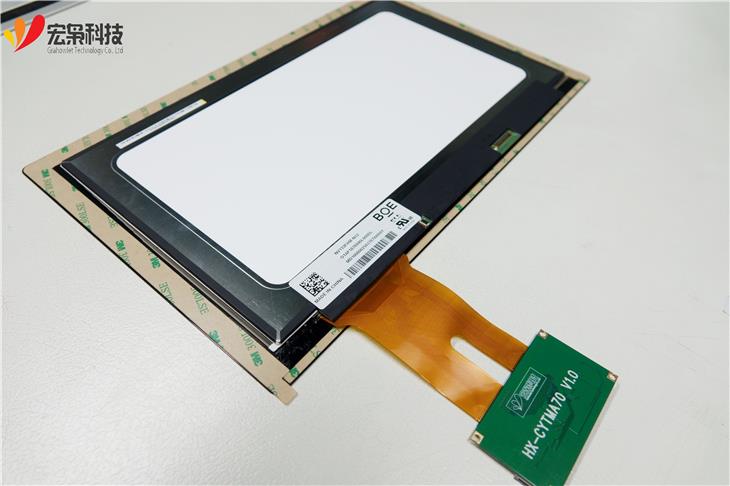

Isikrini esiqikelelweyo se-13.3 Isikrini sokuThenga sithunyelwa ngqo kwi-USB iNgqumbo ye-USB, ngo-1920 * 1080 I-1080 yeSoftsocation Stores kunye ne-EDP yeSoftware Sciences Screen kunye ne-DEB ENGCINED IBHODI YENDLELA YOKUZIPHATHA NGOKUFANELEKILEYO. Isikrini se-SILK sijikeleze simnyama, umboniso oboniswayo umnyama, ngoko ke umphumo omnyama wombala ungcono;

I-Q & A

Q: Phantsi kweziphi iimeko isisombululo semodyuli yokwenyani esibonakalayo?

A: 1. Ukuba umthengi unezinto ezifunekayo kubuhle bemveliso ngokubanzi, banokuluthathela ingqalelo i-biling yemveliso kuba yonke imiphumo eminyama yemodyuli ilungile emva kokukhanya kwembonakalo; 2. Ukuba imveliso yomthengi ineemfuno eziphezulu ezinjenge-anti -}}}}}}}}}}}}}}}}}}}}}} isimo sothuso kunye nokunganyangeki kwempembelelo kwimeko yakhe yokusebenza, isisombululo esibonakalayo sinokuqwalaselwa; 3. Ukuba imveliso yomthengi isetyenziswa ngaphandle kwaye ineemfuno ezithile kwifuthe elibonakalayo leLanga kunye nokuzinza kwesothuso esishushu nelibandayo kunye nesicwangciso se-Boondical kufuneka siqwalaselwe;

Q: Zithini izicwangciso zobuchule ze-ESD kwiimveliso ze-EMC zeemveliso zokugqibela?

A: Isisombululo sisonke kukuphuma umbane oqinileyo emhlabeni. Kukho ezi ngcebiso zilandelayo:

1), Uncedo lwamandla kunye neTVS Tube: Ukukhuselwa kwe-ESD ye-VCC ye-VCC, ityhefu yeTV inokunxibelelana kwaye iconjululwe. I-TVS Tube ifana kakhulu nomsebenzi wevolthi. Inevolthi enqwenelekayo. Umahluko kukuba isantya sayo sokuphendula sikhawuleza kwaye sinempembelelo entle yombane oqingqiweyo.

2) Ukukhuselwa kwe-ESD yomgca wesinxibelelanisi weSignali sangaphandle: Unokujonga kwaye uqhagamshele i-diode ephindaphindiweyo ukukhokela okwangoku kumbane okanye emhlabeni;

3), Ukucoca i-LC kongezwa kumandla ombane wezixhobo ezibuthathaka: ezinye i-IC zichaphazeleka kakhulu kumbane oqingqiweyo. Xa iimvavanyo ze-ESD ziqhutywa, setha okanye ukusweleka kuhlala kwenzeka. Isizathu kukuba iPIN yokuhambisa amandla ihlala iphazamisekile. Ngenxa yoku, ukucoceka kwe-LC kunokongezwa kunikezelo lwalo lwamandla.

I-4) Iimfuneko zokuhambisa i-PCB: I-PCB kufuneka ifakwe kangangoko kunokwenzeka. Ukuba yiphaneli ephindwe kabini, omabini amacala kufuneka atyhutyha ubhedu kwindawo enkulu, kwaye kufanele kubekho imingxunya yomhlaba owaneleyo. Ukuba yi--}} ibhodi okanye ngaphezulu, ungqimba lweplanethi olwenziwe kwibala lezinto eziphambili kufuneka usekwe kulwakhiwo.

Iimfuno ezi-5) Ukukhupha ngempumelelo umbane oqingqiweyo, isiseko esihle kufuneka siqinisekiswe. Umzekelo, ii-elektroniki zonyango, iimveliso zonyango ngokubanzi ezinjengeendawo zokubeka esweni, kuya kubakho isiphelo esilinganayo esilinganayo emva kwefusela. Xa usenza iimvavanyo ezi-ESD, esi siphelo sikhutshiweyo sinxulunyaniswa nomhlaba, ke kukho indlela yokuphefumla ngokukhawuleza . 6) I-PCB ye-PCB ye-chip: Ukuba isiphumo se-chip ekude kwi-chip, isiphumo sokuhombisa siya kulahleka. Ukuba umgca wemiqondiso enobuthathaka inde kakhulu, kuya kwaziswa uphazamiso olungalindelekanga lwe-electromagnetic. Ngokwe-anti -}} izixhobo ezinobuthathaka okanye imigca yomqondiso (njengokuseta kwakhona) kufuneka igcinwe ikhutshelwe ngaphandle kwezixhobo kunye nemigca yomqondiso. Umda we-PCB kufuneka ube nobubanzi obuthile bomsantsa okanye ubhedu.
